USD Security
Due to the fact that the imported user-id is in uppercase and our DB is case sensitive, everybody has to login with his or her Windows login-id in uppercase and their normal NT- password.

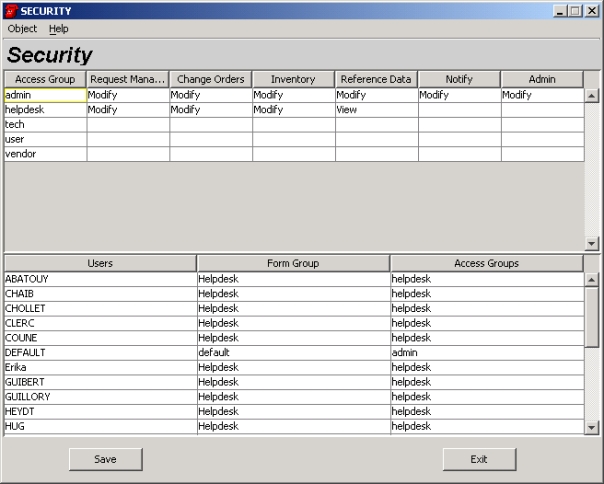

Based on that ID rights are provided in the system. This is performed by ‘Security’ on the application server.
graphic
